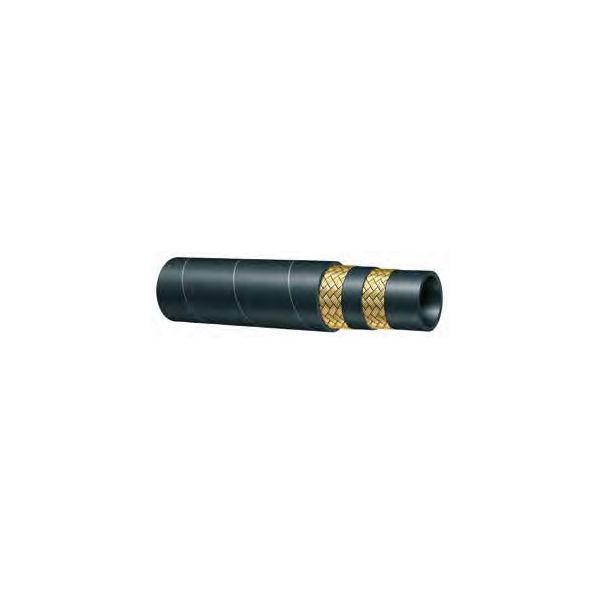

8N6AA Flexopak 2SC HF Rubber Wire Braid Hydraulic Hose

8N6AA Flexopak 2SC HF Rubber Wire Braid Hydraulic Hose is designed for high-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water applications.
Manufacturer: ALFAGOMMA

8N6AA Flexopak 2SC HF Rubber Wire Braid Hydraulic Hose

Tube
: oil resistant synthetic rubber.
Reinforcement: two high tensile steel braids.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
HALOGEN-FREE COMPOUND
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 4:1
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

8N6AA Flexopak 2SC HF Rubber Wire Braid Hydraulic Hose

Tube
: oil resistant synthetic rubber.
Reinforcement: two high tensile steel braids.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
Application: high-pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
HALOGEN-FREE COMPOUND
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 4:1
Length: random

Note: Prices shown are net excluding VAT and carriage. Prices per meter. Prices and product availability are subject to change without notice. Lengths, further diameters and colours on request. TEC Industrial also supplies this hose with fittings already assembled.

Products specifications
SKIVE OPTIONSNO SKIVE, SKIVE, SKIVE AND NO SKIVE
Operating PressureMedium-Pressure
Picture of 3/8" (10mm) ID X 16.5mm OD FLEXOPAK 2SC HF
3/8" (10mm) ID X 16.5mm OD FLEXOPAK 2SC HF
3/8" (10mm) ID X 16.5mm OD FLEXOPAK 2SC HF Rubber Wire Braid Hydraulic Hose ISO 11237 – EN 857 2SC 330bar WP 1320bar BP -40°C +100°C 8N6AA
Availability: In stock
SKU: 8N6AA-06
€10.17
Picture of 1/2" (13mm) ID X 19.9mm OD FLEXOPAK 2SC HF
1/2" (13mm) ID X 19.9mm OD FLEXOPAK 2SC HF
1/2" (13mm) ID X 19.9mm OD FLEXOPAK 2SC HF Rubber Wire Braid Hydraulic Hose ISO 11237 – EN 857 2SC 275bar WP 1100bar BP -40°C +100°C 8N6AA
Availability: In stock
SKU: 8N6AA-08
€9.32
Products specifications
SKIVE OPTIONSNO SKIVE, SKIVE, SKIVE AND NO SKIVE
Operating PressureMedium-Pressure
