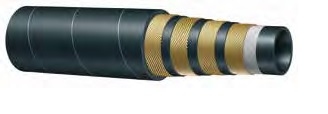

FLEXOR 12

code: 898AA R12

SAE 100 R12 - EN 856 R12

Tube: oil resistant synthetic rubber.
Reinforcement: four high tensile steel spirals.
Cover: abrasion, ozone and hydrocarbon resistant synthetic rubber.
MSHA APPROVED
Application: very high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Constant operation: -40 °C +121 °C (-40 °F +250 °F)
Safety factor: 1:4
Length: random up to 1” - 61 m max over 1”1/4


Note: Prices shown are net excluding VAT and carriage. Prices per metre. Prices and product availability are subject to change without notice.

NO SKIVE
DashFerruleCrimp Diameter (mm)
-6 H1200204-060000 24.4
-8 H1200204-080000 28.5
-10 H1200204-100000 32.7
-12 H1200204-120000 36.3
-16 H1200204-160000 43.9

_
SKIVE
DashFerruleCrimp Diameter (mm) External Skive
Length (mm)
-6 H1100404-060000 22.3 19
-8 H1100404-080000 26.6 25
-10 H1100404-100000 29.8 28
-12 H1100404-120000 32.9 33
-16 H1100404-160000 41.0 37
-20H1100404-200000 51.2 41
-24H1100404-240000 60.1 47
-32H1100404-320000 75.0 60


Downloads

Download Product Specification
CodeSize ID (dash)BarColourBrandPrice
